WEB PLATFORMS

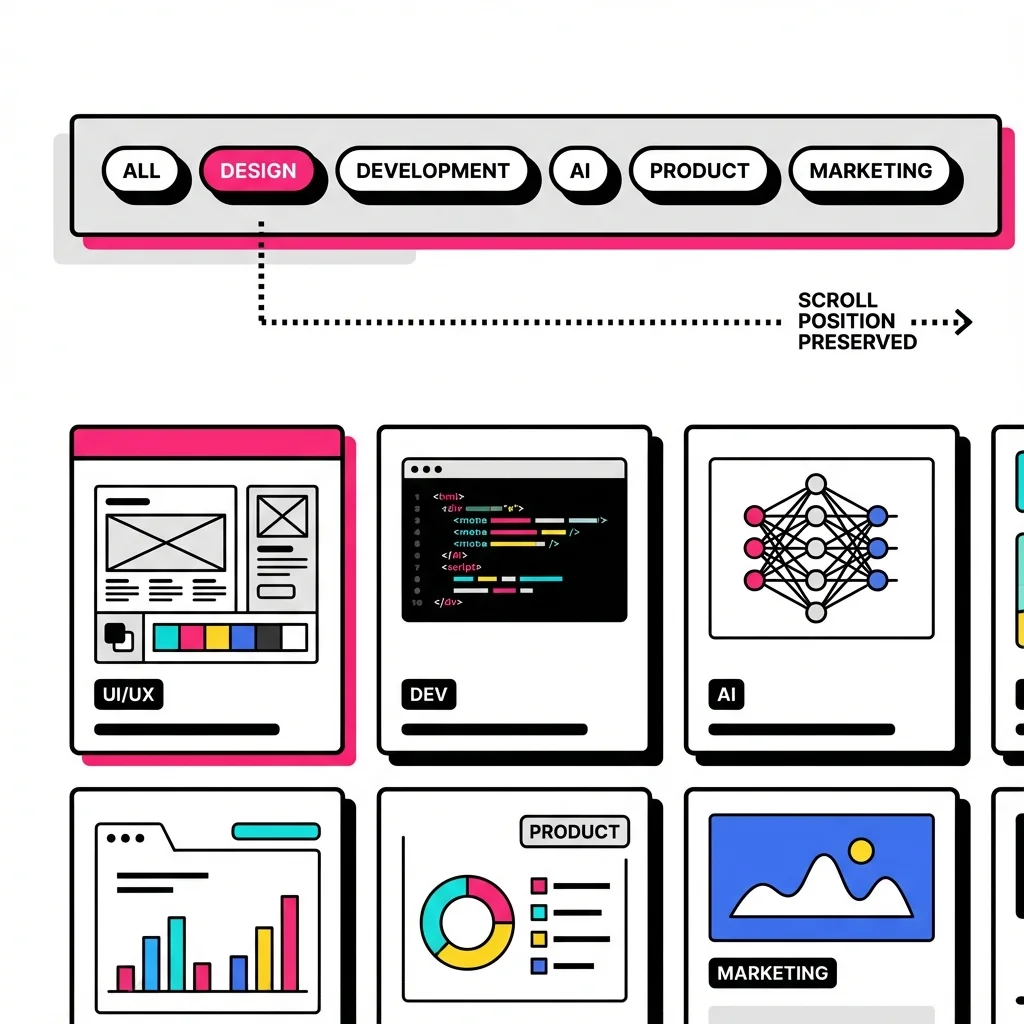

Persistent Filter Bar with View Transitions

Personal Project

FRONTEND DEVELOPER

Dec 2024 – Present

SEAMLESS CATEGORY FILTERING WITH PROFESSIONAL POLISH—NO SCROLL JUMPS, NO HOVER FLICKER.

Persistent Filter Bar with View Transitions

What Makes a Filter Bar Feel Professional

Category filter bars appear simple but require careful attention to preserve user context during navigation:

User Expectation	Common Failure Mode
Scroll position persists	Resets to left on each page
Hover state continues through click	Drops and re-applies, causing flicker
Page depth maintained when filtering	Jumps to top on every filter change
Click feels responsive	No feedback during navigation delay

This guide covers the patterns required to deliver a polished filtering experience with Astro’s View Transitions API.

Pattern 1: DOM Persistence with `transition:persist`

The standard View Transition behavior swaps DOM elements—capturing a snapshot of the old element, replacing it with the new one, and crossfading between them. For interactive components like filter bars, this breaks continuity.

Use transition:persist to keep the actual DOM element alive across navigations:

<nav
  id="work-category-nav"
  transition:name="work-category-nav"
  transition:persist
  class="flex flex-nowrap gap-3 overflow-x-auto"
>
  {categories.map(cat => (
    <a href={`/work/category/${slugify(cat)}`}
       class={cat === activeCategory ? 'btn-accent' : 'btn-outline'}>
      {cat}
    </a>
  ))}
</nav>

What Persistence Preserves

State	Standard Transition	With `persist`
`scrollLeft` position	Resets to 0	Maintained
`:hover` pseudo-class	Lost on swap	Maintained
Ongoing CSS animations	Interrupted	Continue
Event listeners	Require re-binding	Already bound

Required Trade-off: Manual State Sync

Persisted elements bypass server rendering on navigation. The active button styling must be updated via JavaScript:

document.addEventListener('astro:after-swap', () => {
  const nav = document.getElementById('work-category-nav');
  const currentPath = window.location.pathname;

  nav?.querySelectorAll('a').forEach(btn => {
    const href = btn.getAttribute('href');
    const isActive = href === currentPath ||
      (currentPath === '/work' && href === '/work');

    btn.classList.toggle('btn-accent', isActive);
    btn.classList.toggle('btn-outline', !isActive);
    btn.toggleAttribute('aria-current', isActive);
  });
});

Pattern 2: The Delta-Restoration Scroll Strategy

Even without transition:persist, scroll positions require explicit handling. Astro resets scroll to the top during page transitions.

Horizontal Scroll: Always Restore

The filter bar’s scrollLeft should be restored on every navigation—whether switching filters or returning from a detail page:

const SCROLL_KEY = 'filterScrollPos';

document.addEventListener('astro:before-preparation', () => {
  const nav = document.getElementById('work-category-nav');
  if (nav) sessionStorage.setItem(SCROLL_KEY, nav.scrollLeft);
});

document.addEventListener('astro:after-swap', () => {
  const nav = document.getElementById('work-category-nav');
  const saved = sessionStorage.getItem(SCROLL_KEY);
  if (nav && saved) nav.scrollLeft = parseInt(saved, 10);
});

Vertical Scroll: Conditional Restoration

Vertical page scroll requires a different approach. Browser history navigation (back/forward) has its own scroll restoration—overriding it creates a worse experience.

The solution: only restore vertical scroll for explicit filter clicks, not all navigations.

const PAGE_SCROLL_KEY = 'pageVerticalScroll';
const NAV_FLAG_KEY = 'isFilterNavigation';

// Mark filter clicks explicitly
nav.addEventListener('click', (e) => {
  if (e.target.closest('a')) {
    sessionStorage.setItem(NAV_FLAG_KEY, 'true');
    sessionStorage.setItem(PAGE_SCROLL_KEY, window.scrollY);
  }
});

document.addEventListener('astro:after-swap', () => {
  const isFilterNav = sessionStorage.getItem(NAV_FLAG_KEY) === 'true';
  sessionStorage.removeItem(NAV_FLAG_KEY);

  if (isFilterNav) {
    const saved = sessionStorage.getItem(PAGE_SCROLL_KEY);
    if (saved) window.scrollTo(0, parseInt(saved, 10));
  }
  // Browser handles history navigation scroll automatically
});

Pattern 3: Tactile Click Feedback

View transitions introduce a delay between click and visible change. Without feedback, the interface feels unresponsive. Add a brief pulse animation on click:

@keyframes filter-btn-pulse {
  0% { transform: scale(1); }
  50% { transform: scale(0.95); filter: brightness(1.1); }
  100% { transform: scale(1); }
}

.filter-btn-animate {
  animation: filter-btn-pulse 0.2s ease-out;
}

nav.addEventListener('click', (e) => {
  const link = e.target.closest('a');
  if (link) {
    link.classList.add('filter-btn-animate');
    link.addEventListener('animationend', () => {
      link.classList.remove('filter-btn-animate');
    }, { once: true });
  }
});

The animation completes regardless of navigation timing, providing immediate acknowledgment.

Pattern 4: Scroll Affordance with Edge Fades

Long filter lists require overflow scrolling. Gradient fades at the edges signal that more content exists:

<div class="relative">
  <div
    id="filter-fade-left"
    class="absolute left-0 w-12 h-full bg-gradient-to-r
           from-base-100 to-transparent pointer-events-none z-10"
    transition:animate="none"
    style="opacity: 0"
  />

  <nav id="work-category-nav">...</nav>

  <div
    id="filter-fade-right"
    class="absolute right-0 w-12 h-full bg-gradient-to-l
           from-base-100 to-transparent pointer-events-none z-10"
    transition:animate="none"
    style="opacity: 1"
  />
</div>

Update visibility based on scroll position:

function updateFades() {
  const nav = document.getElementById('work-category-nav');
  const fadeLeft = document.getElementById('filter-fade-left');
  const fadeRight = document.getElementById('filter-fade-right');

  const { scrollLeft, scrollWidth, clientWidth } = nav;
  const maxScroll = scrollWidth - clientWidth;

  fadeLeft.style.opacity = scrollLeft > 5 ? '1' : '0';
  fadeRight.style.opacity = scrollLeft < maxScroll - 5 ? '1' : '0';
}

nav.addEventListener('scroll', updateFades);

Note the transition:animate="none" on fade elements—this prevents them from fading in during page transitions when they should already be visible.

Architecture: Static Routes vs Client-Side Filtering

This implementation uses static routes (/work/category/automation-ai) rather than client-side filtering. The trade-offs favor static routing for most use cases:

Concern	Static Routes	Client-Side
SEO	Category pages are indexable	Requires additional configuration
Shareability	URLs are meaningful and shareable	Query params or hash fragments
JS Dependency	Works without JavaScript	Requires JavaScript
Initial Load	Each category pre-rendered	Filter logic runs client-side
View Transitions	Natural integration	Manual animation handling

View Transitions make static routes feel as fluid as client-side filtering while preserving the architectural benefits.
